Eicma: Husky Nuda i billeder og tal
De første meldinger vi har fået går på hård og stødende affjedring, så følingen med underlaget kan forsvinde. En problemstilling vi tidligere har oplevet på de italienske motorcykler. Dog er informationerne at R modellen har langt bedre funktionel affjedring, men så ender prisen også langt højere.
Vi gætter på en danskerpris omkring de 165.000 kr. for modellen uden R. Måske endnu højere.

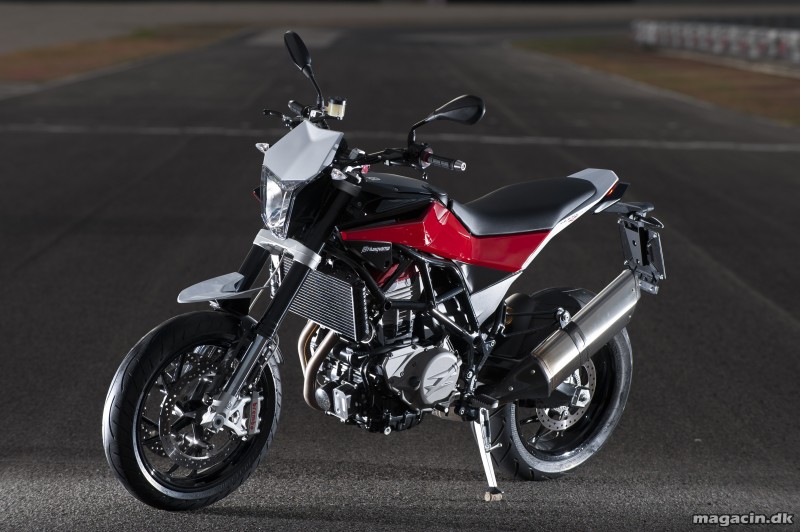

Nyd billederne af smukke Nuda og Smukke Nuda R.
|
Technical Data |
Nuda 900 |
Nuda 900R |
|
Engine |
||
|
Type |
Water cooled 4-stroke in-line two-cylinder, two overhead camshafts, dry sump lubrication |
Water cooled 4-stroke in-line two-cylinder, two overhead camshafts, dry sump lubrication |
|
Bore / stroke |
84 mm x 81mm |
84 mm x 81mm |
|
Capacity |
898 cc |
898 cc |
|
Rated output |
77 kW (105 hp) at 8.500 rpm |
77 kW (105 hp) at 8.500 rpm |
|
Max. torque |
100 Nm at 7.000 rpm |
100 Nm at 7.000 rpm |
|
Compression ratio |
13,0:1 |
13,0:1 |
|
Mixture control / engine management |
Electronic intake pipe injection / digital engine management, two engine mappings (switchable by customer) |
Electronic intake pipe injection / digital engine management, two engine mappings (switchable by customer) |
|
Emission control |
Closed-loop 3-way catalytic converter, emission standard EU3 |
Closed-loop 3-way catalytic converter, emission standard EU3 |
|
Performance / fuel consumption |
||
|
Maximum speed |
Over 200 km/h |
Over 200 km/h |
|
Fuel consumption over 100 km at constant 90 km/h |
3,9 l/ 100 km |
4,3 l/ 100 km |
|
Fuel consumption over 100 km at constant 120 km/h |
5,3 l/ 100 km |
5,95 l/ 100 km |
|
Fuel type |
Unleaded super, minimum octane rating 95 (RON) |
Unleaded super, minimum octane rating 95 (RON) |
|
Electrical system |
||
|
Alternator |
390 W |
390 W |
|
Battery |
12V/ 14 Ah, maintenence free |
12V/ 14 Ah, maintenence free |
|
Power transmission |
||
|
Clutch |
Multiple-disc clutch in oil bath, mechanically operated |
Multiple-disc clutch in oil bath, mechanically operated |
|
Gearbox |
Constant mesh 6-speed gearbox integrated into crankcase |
Constant mesh 6-speed gearbox integrated into crankcase |
|
Drive |
Endless O-ring chain with shock damping in the rear hub |
Endless O-ring chain with shock damping in the rear hub |
|
Chassis / brakes |
||
|
Frame |
Tubular steel trellis main frame and rear frame, removable passenger footpegs |
Tubular steel trellis main frame and rear frame, removable passenger footpegs |
|
Front wheel location / suspension |
Sachs Up Side Down fork, ø 48 mm |
Sachs Up Side Down fork, ø 48 mm, rebound and compression damping adjustable, spring preload mechanically adjustable |
|
Rear wheel location / suspension |
Cast aluminium dual swingarm, cantilever with Sachs shock absorber, spring preload mechanically adjustable, rebound damping adjustable |
Cast aluminium dual swingarm, cantilever with Öhlins shock absorber, rebound and compression damping adjustable, spring preload mechanically adjustable, length adjustable (Δ10 mm) |
|
Travel front / rear |
210 mm/ 180 mm |
210 mm/ 180 mm |
|
Wheelbase |
1.495 mm |
1.495 mm |
|
Castor |
101 mm |
101 mm |
|
Steering head angle |
65,5° |
65,5° |
|
Wheels |
Cast aluminium wheel |
Cast aluminium wheel |
|
Rim, front |
3,5″x17″ |
3,5″x17″ |
|
Rim, rear |
5,5″x17″ |
5,5″x17″ |
|
Tyres, front |
120/ 70 ZR 17 |
120/ 70 ZR 17 |
|
Tyres, rear |
180/ 55 ZR 17 |
180/ 55 ZR 17 |
|
Brake, front |
Brembo system: double floating discs, ø 320 mm, 4 – piston radial calipers with sintered pads |
Brembo system: double floating discs, ø 320 mm. 4 – piston monoblock radial calipers with sintered pads |
|
Brake, rear |
Brembo system: single disc, ø 265 mm with floating caliper |
Brembo system: single disc, ø 265mm with floating caliper |
|
Dimensions / weight |
||
|
Seat height, unladen weight |
870 mm (860 mm low seat-accessory) |
875 – 895 mm (adjustable rear shock length) |
|
Inner leg curve |
1.910 mm (1.890 mm low seat-accessory) |
1.920 – 1.960 mm (adjustable rear shock length) |
|
Unladen weight, road ready, fully fueled 1) |
195 kg |
195 kg |
|
Dry weight |
174 kg |
174 kg |
|
Permitted total weight |
391 kg |
391 kg |
|
Payload (with standard equipment) |
196 kg |
196 kg |
|
Usable tank volume |
13 l |
13 l |
|
Reserve |
approx. 3 l |
approx. 3 l |
|
Length |
2.190 mm |
2.190 mm |
|
Height (not inc. mirrors) |
1.220 mm |
1.225 – 1.245 mm |
