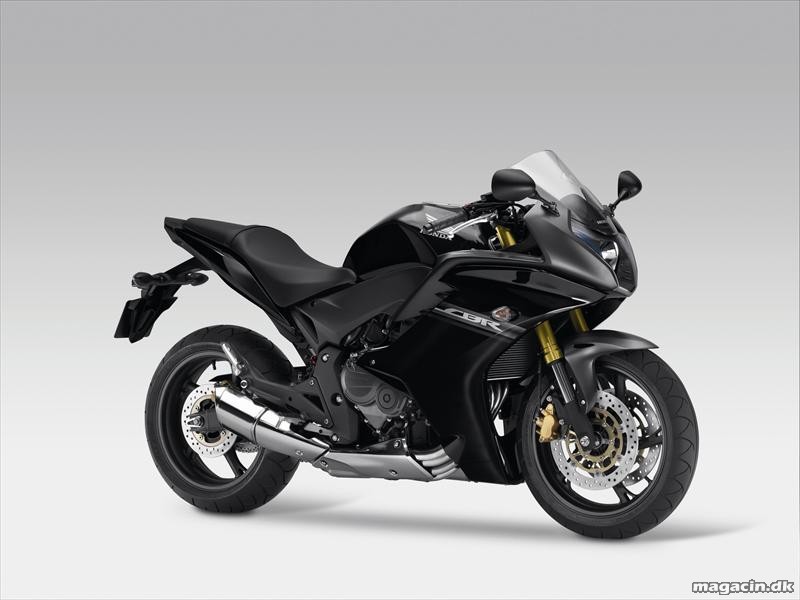

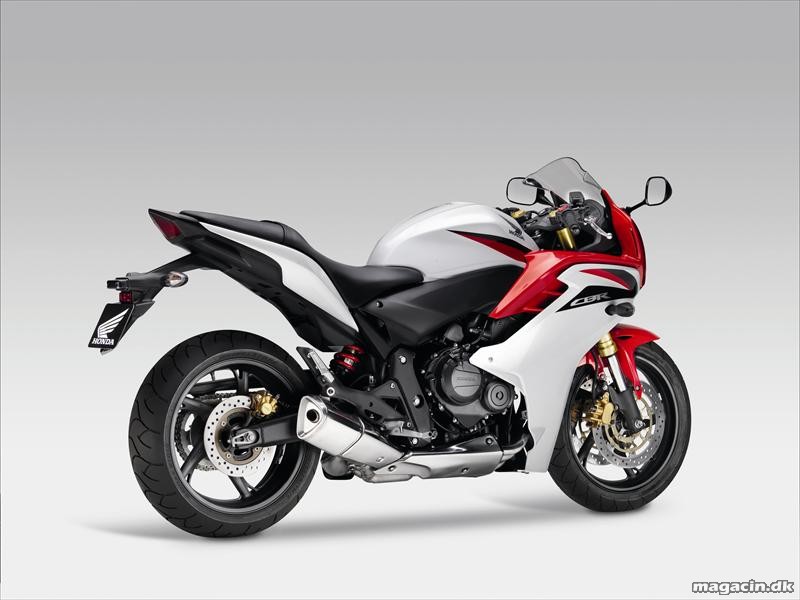

Alt om den nye Honda CBR600F

Intropris i DK: 140.000 kr.

Specifications CBR600F (ED-type)

ENGINE

Type Liquid-cooled 4-stroke 16-valve DOHC inline

4 Displacement 599cm3

Bore – Stroke 67 – 42.5mm

Compression Ratio 12 : 1

Max. Power Output 75kW/12,000min-1 (95/1/EC)

Max. Torque 64Nm/10,500min-1 (95/1/EC)

FUEL SYSTEM

Carburation PGM-FI electronic fuel injection

Throttle Bore 36mm

ELECTRICAL SYSTEM

Ignition System Computer-controlled digital transistorised with electronic advance

Starter Electric

Battery Capacity 12V/8.6AH

Headlights 12V; 60/55W low and high

DRIVETRAIN

Clutch Wet, multiplate with coil springs

Clutch Operation Mechanical; cable-actuated

Transmission Type 6-speed

Final Drive 525 ‘O’-ring sealed chain

FRAME Type

Mono-backbone; rectangular-section gravity die-cast aluminium

CHASSIS

Dimensions (L-W-H) 2,150 x 740 x 1,150

Wheelbase 1,437mm

Caster Angle 25° Trail 99mm

Seat Height 800mm

Ground Clearance 135mm

SUSPENSION

Type Front 41mm tension and preload adjustable inverted HMAS cartridge-type telescopic

fork, 120mm stroke

Rear Monoshock damper with adjustable tension and preload, 46mm stroke

WHEELS

Rim Size Front 17M/C x MT3.50

Rear 17M/C x 5.50

Tyre Size Front 120/70 ZR17M/C

Rear 180/55 ZR17M/C

BRAKES

Type Front 296 x 4.5mm dual hydraulic disc with dual-piston (*three-piston calipers), floating rotors (*ABS) and sintered metal pads

Rear 240 x 5mm hydraulic disc with single-piston caliper (*ABS) and sintered metal pads *ABS version
