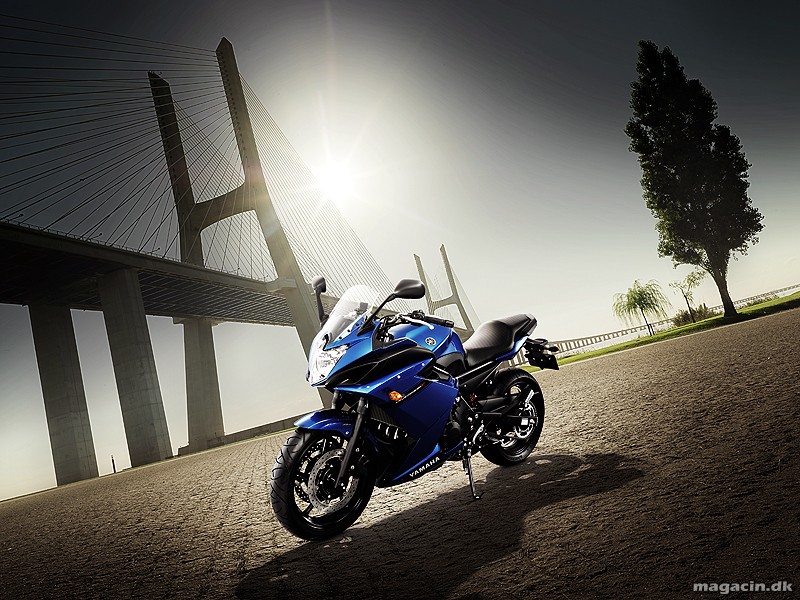

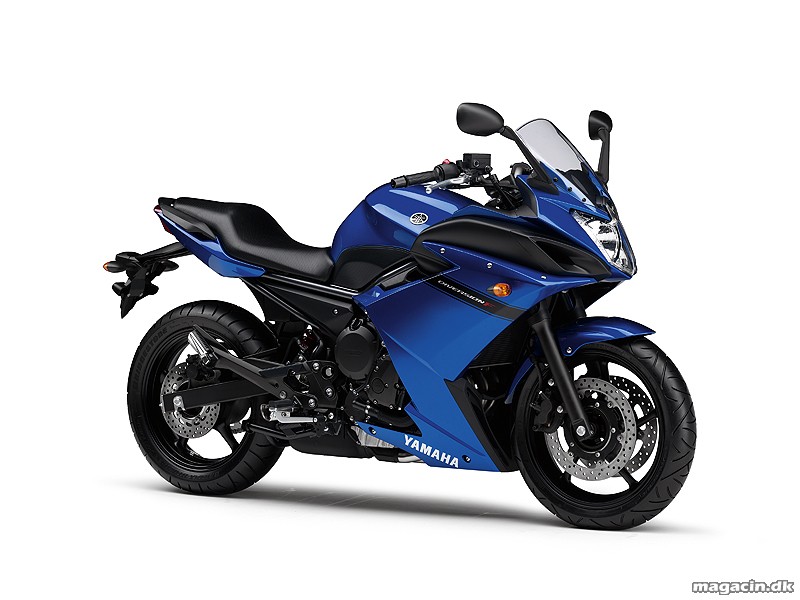

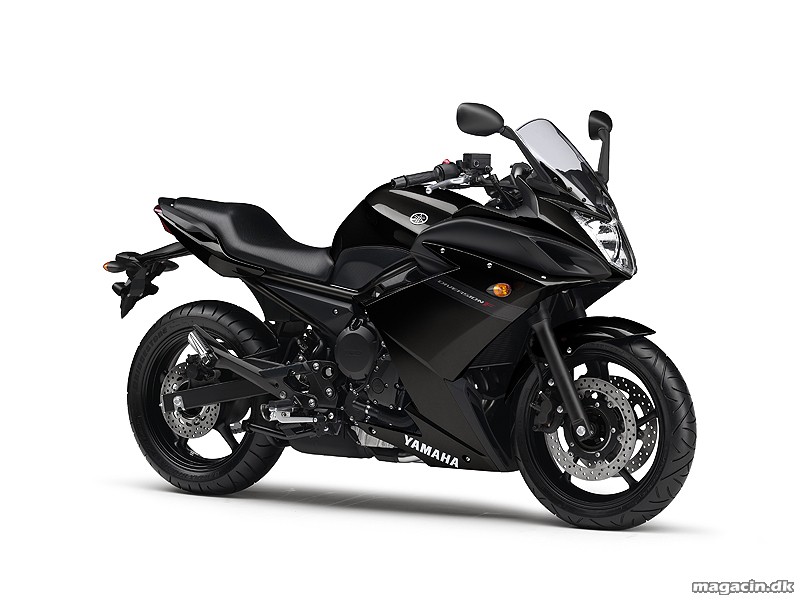

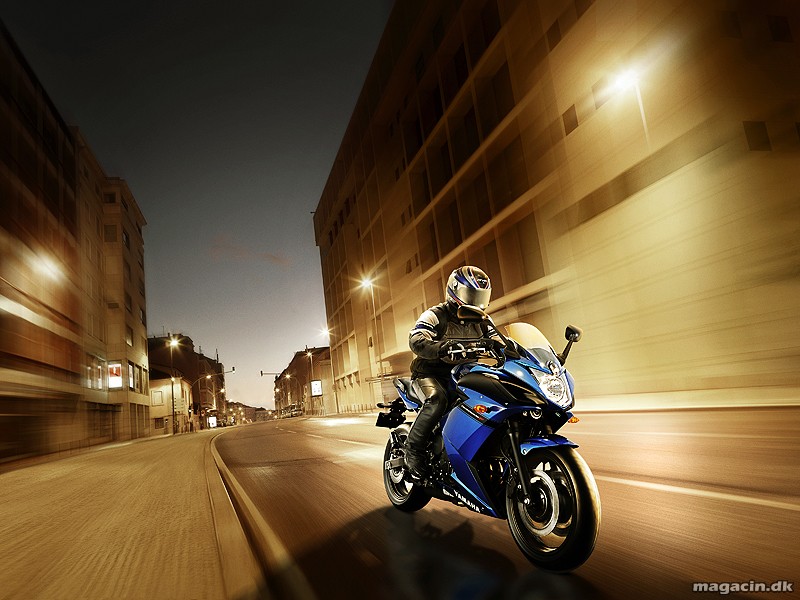

Ny fuldkåbe Yamaha i billeder

XJ6 Diversion iføres fuld påklædning

Tommy Rønn
08/10-2009 kl. 20:00

Som tidligere beskrevet her på siden, påklædes den populære XJ6. Teknisk er maskinen identisk med den vi allerede kender.

Vigtigt er det at Yamaha kan holde prisen lav.

Tidligere artikel her.

TECHNICAL SPECIFICATIONXJ6 DiversionF
ENGINE
TypeLiquid-cooled, 4-stroke, forward-inclined parallel
 4-cylinder, 4-valves, DOHC
Displacement600cc
Bore x stroke65.5 x 44.5 mm
Compression ratio12.2 : 1
Max. Power57.0 kW (77.5 PS) @ 10,000 rpm
Max. Torque59.7 Nm (6.1 kg-m) @ 8,500 rpm
Lubrication systemWet sump
Fuel supply systemFuel Injection
Clutch typeWet, multiple-disc
Ignition systemTCI
Starter systemElectric
Transmission systemConstant mesh 6-speed
Final transmission systemChain
Primary reduction ratio86/44  (1.955)
Secondary reduction ratio46/16  (2.875)
Gear ratio 1st gear 37/13  (2.846)
Gear ratio 2nd gear 37/19  (1.947)
Gear ratio 3rd gear 28/18  (1.556)
Gear ratio 4th gear 32/24  (1.333)
Gear ratio 5th gear 25/21  (1.190)
Gear ratio 6th gear 26/24  (1.083)
CHASSIS
FrameDiamond shaped
Front suspensionTelescopic fork
Front wheel travel130 mm
Rear suspensionSwingarm (mono cross)
Rear wheel travel130 mm
Caster angle26º
Trail103 mm
Front brakeDual discs, Ø 298 mm
Rear brakeSingle disc, Ø 245 mm
Front tyre120/70 ZR17M/C (58W) (tubeless)
Rear tyre160/60 ZR17M/C (69W) (tubeless)
DIMENSIONS
Overall length2,120 mm
Overall width770 mm
Overall height1,210 mm
Seat height785 mm
Wheelbase1,440 mm
Min. ground clearance140 mm
Wet weight (including full oil and fuel tank)217 kg
Fuel capacity17.0 litres
Oil capacity3.4 litres
