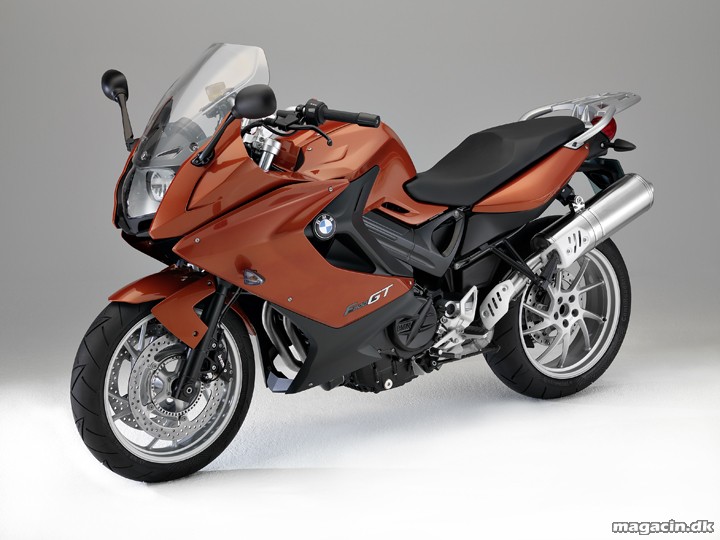

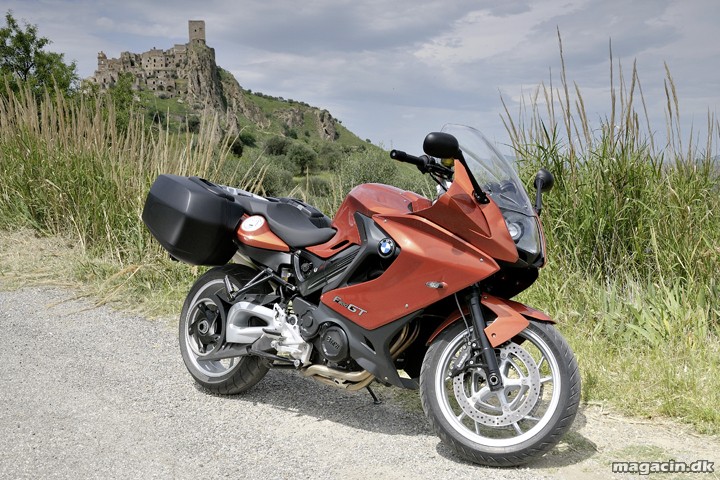

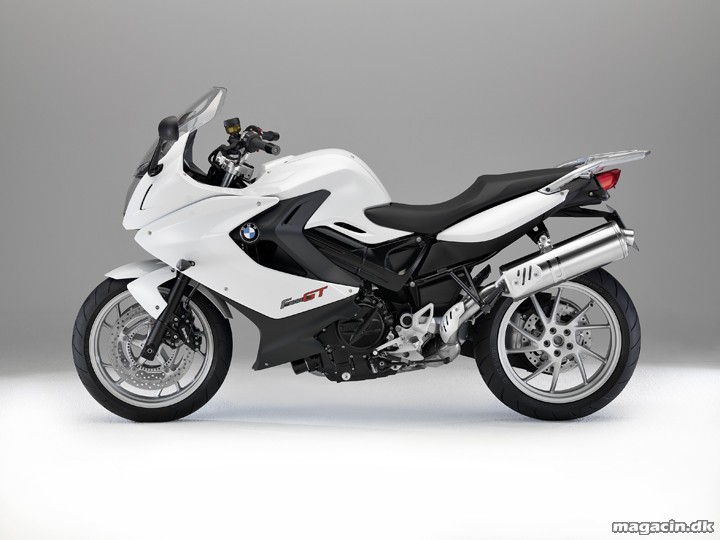

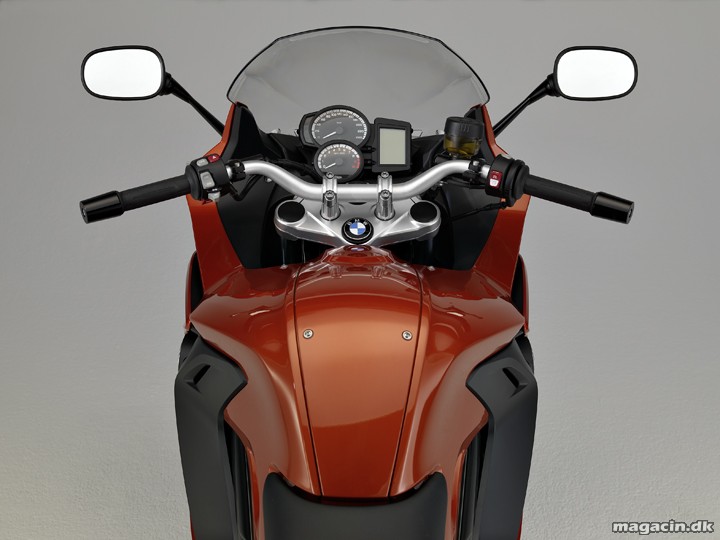

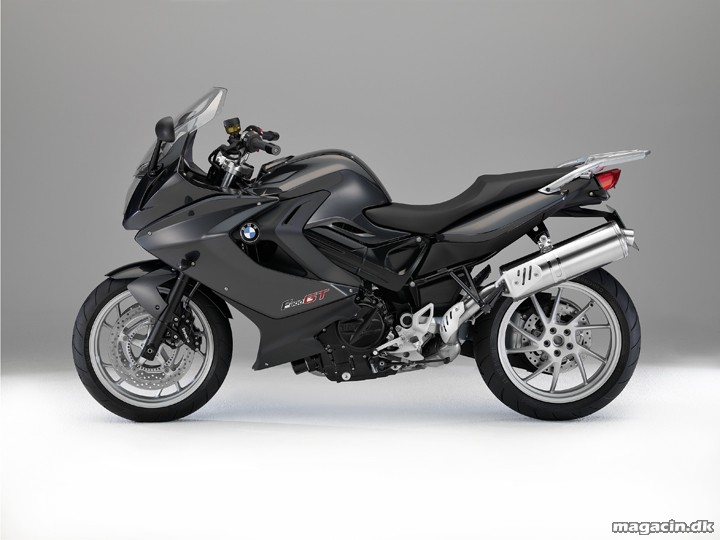

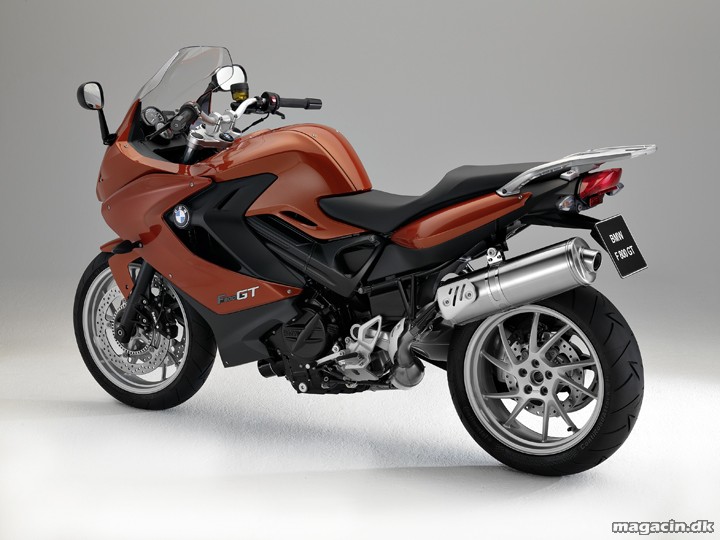

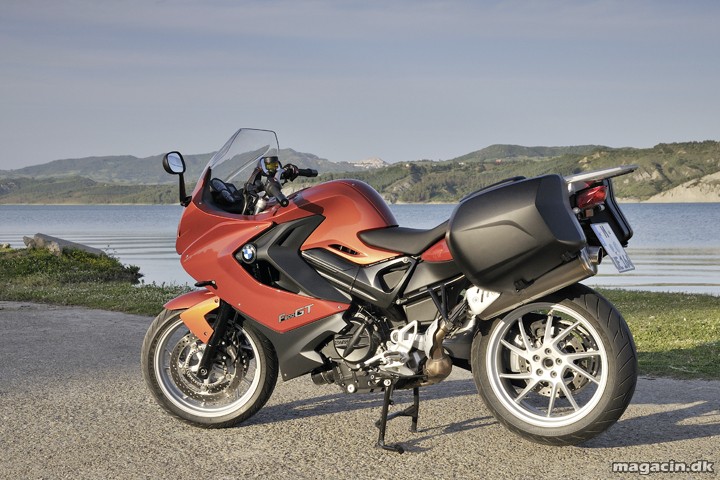

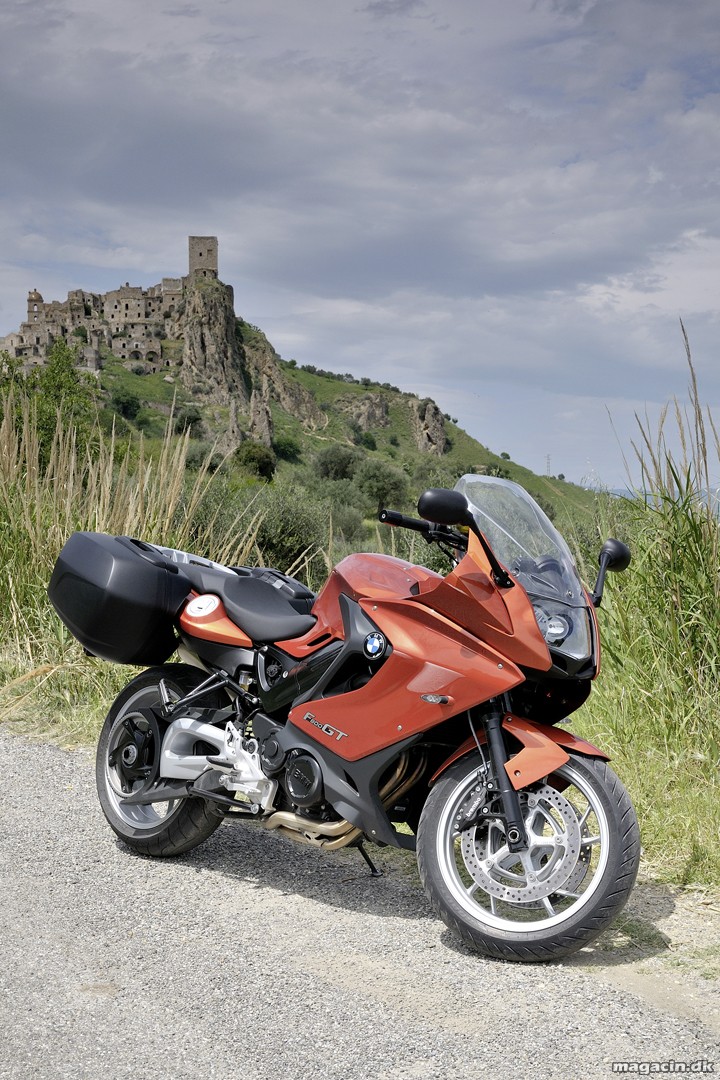

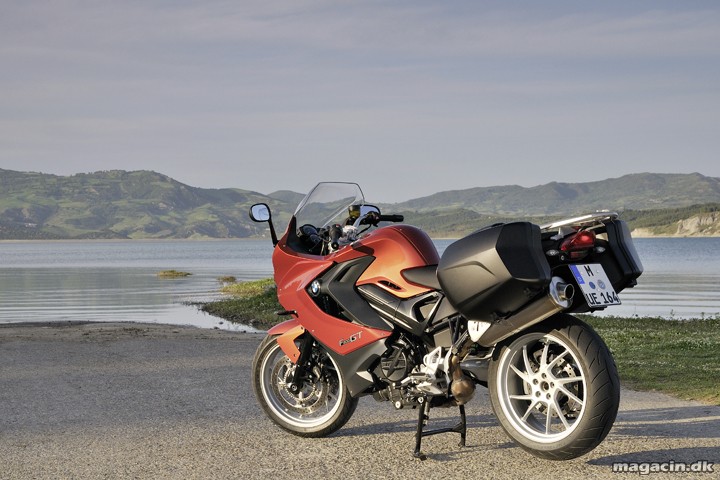

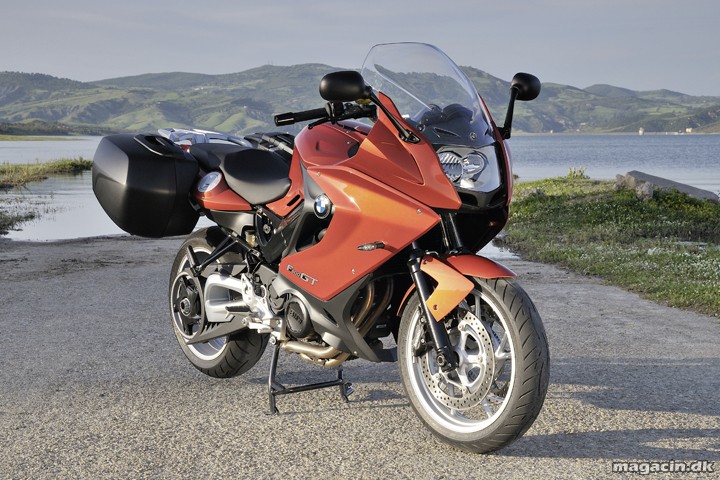

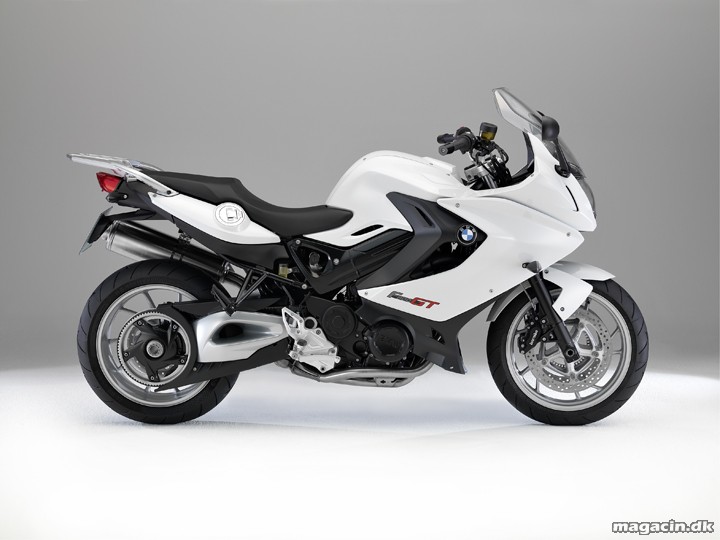

Den nye BMW tourer i tal og data
|
Engine |
|||
|
Capacity |
cc |
798 |
|
|
Bore/stroke |
mm |
82/75.6 |
|
|
Output |
kW/bhp |
66/90 |
|
|
at engine speed |
rpm |
8,000 |
|
|
Torque |
Nm |
86 |
|
|
at engine speed |
rpm |
5,800 |
|
|
Type |
Water-cooled 2-cylinder in-line engine |
||
|
Compression/fuel |
12.0:1 / premium unleaded (95 RON) |
||
|
Valve control |
DOHC (double overhead camshaft), cam followers |
||
|
Valves per cylinder |
4 |
||
|
Ø intake/outlet |
mm |
32/27.5 |
|
|
Throttle valve diameter |
mm |
46 |
|
|
Carburetion |
Electronic intake pipe fuel injection, engine control system BMS-KP |
||
|
Emission control |
Closed-loop 3-way catalytic converter |
||
|
Electrical system |
|||
|
Alternator |
W |
400 |
|
|
Battery |
V/Ah |
12/12, maintenance-free |
|
|
Headlight |
High/low-beam: 12 V/55 W, halogen |
||
|
Rear light |
Brake light: 12V/21W, rear light: 12V/5W |
||
|
Starter |
kW |
0.9 |
|
|
Power transmission/gearbox |
|||
|
Clutch |
Multiplate wet clutch, mechanically controlled |
||
|
Gearbox |
Constant mesh 6-speed gearbox |
||
|
Primary ratio |
1.943 |
||
|
Gear transmission ratio |
I |
2.462 |
|
|
II |
1.750 |
||
|
III |
1.381 |
||
|
IV |
1.174 |
||
|
V |
1.042 |
||
|
VI |
0.960 |
||
|
Rear wheel drive |
Toothed belt |
||
|
Transmission ratio |
2.353 |
||
|
Chassis |
|||
|
Frame construction type |
Aluminium bridge frame, partially load-bearing supporting engine |
||
|
Front wheel suspension |
Telescopic fork, Ø 43 mm |
||
|
Rear wheel suspension |
Single-sided swingarm, aluminium |
||
|
Spring travel, front/rear |
mm |
125/125 |
|
|
Wheel castor |
mm |
94.6 |
|
|
Wheelbase |
mm |
1514 |
|
|
Steering head angle |
° |
63.8 |
|
|
Brakes |
front |
Hydraulically activated twin disc brake, Ø 320 mm |
|
|
rear |
Hydraulically activated single disc brake, Ø 265 mm, |
||
|
BMW Motorrad ABS as standard |
|||
|
Wheels |
Aluminium cast wheels |
||
|
front |
3.5×17“ |
||
|
rear |
5.5×17“ |
||
|
Tyres |
front |
120/70-ZR17 |
|
|
rear |
180/55-ZR17 |
||
|
Dimensions and weights |
|||
|
Total length |
mm |
2156 |
|
|
Total width with |
mm |
905 |
|
|
Seat height |
mm |
800 (option 820, 765, special accessory 845, 820, 785, 765) |
|
|
DIN unladen weight, road ready |
kg |
213 |
|
|
Permitted total weight |
kg |
420 |
|
|
Fuel tank capacity |
l |
15 |
|
|
Performance figures |
|||
|
Fuel consumption |
|||
|
90 km/h |
l/100 km |
3.4 |
|
|
120 km/h |
l/100 km |
4.3 |
|
|
Acceleration |
|||
|
0–100 km/h |
s |
4.0 |
|
|
Maximum speed |
km/h |
>200 |
|
