Aprilia Caponord 1200 2013

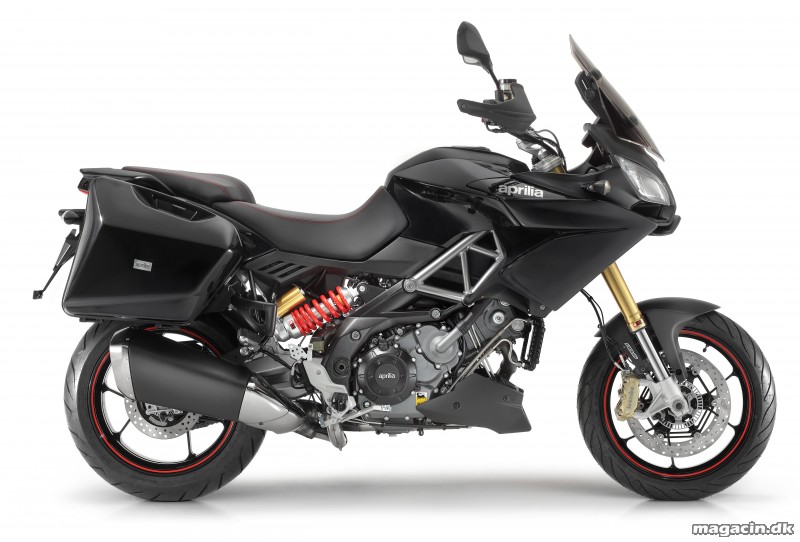

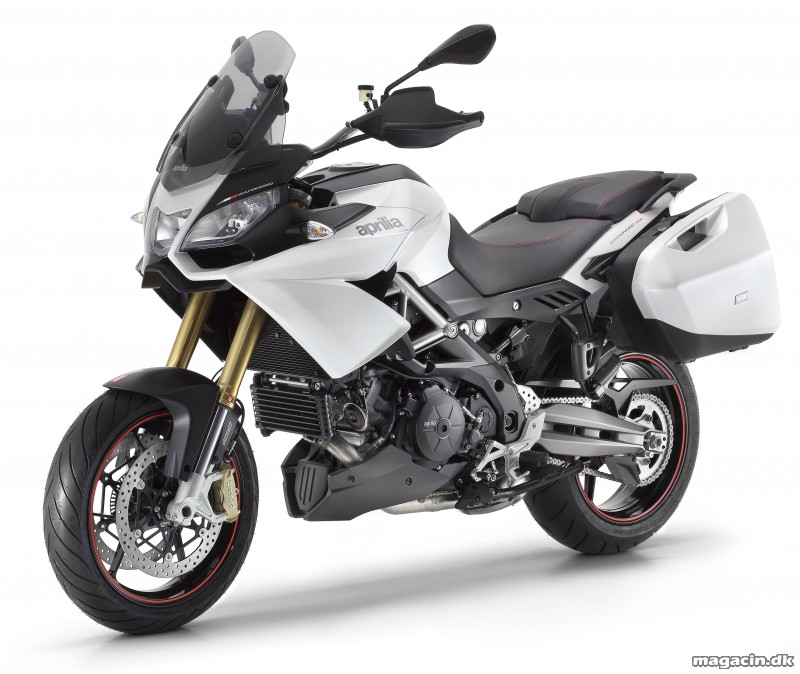

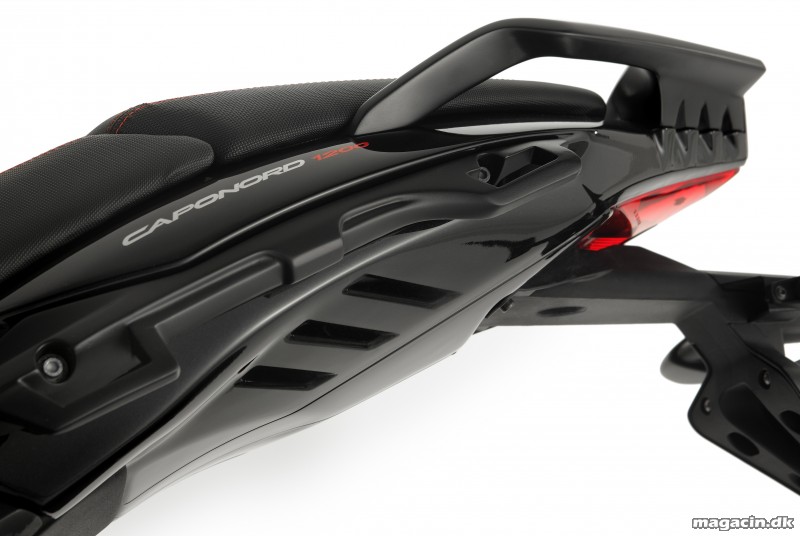

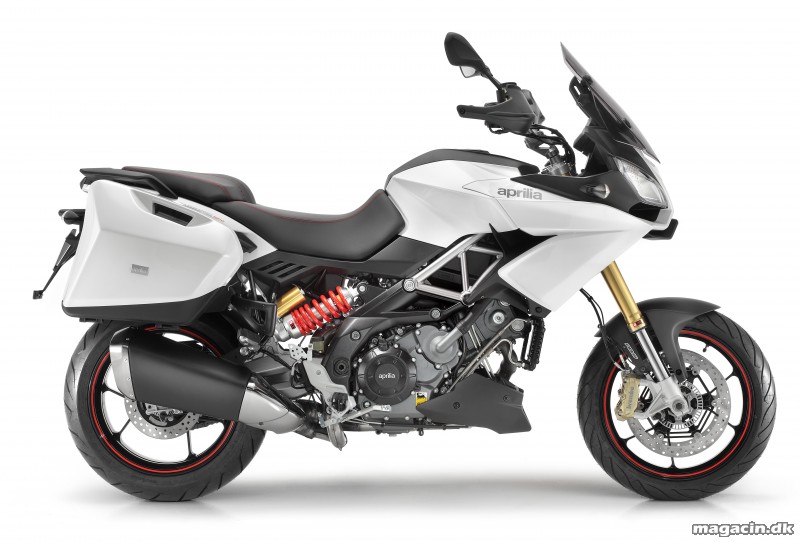

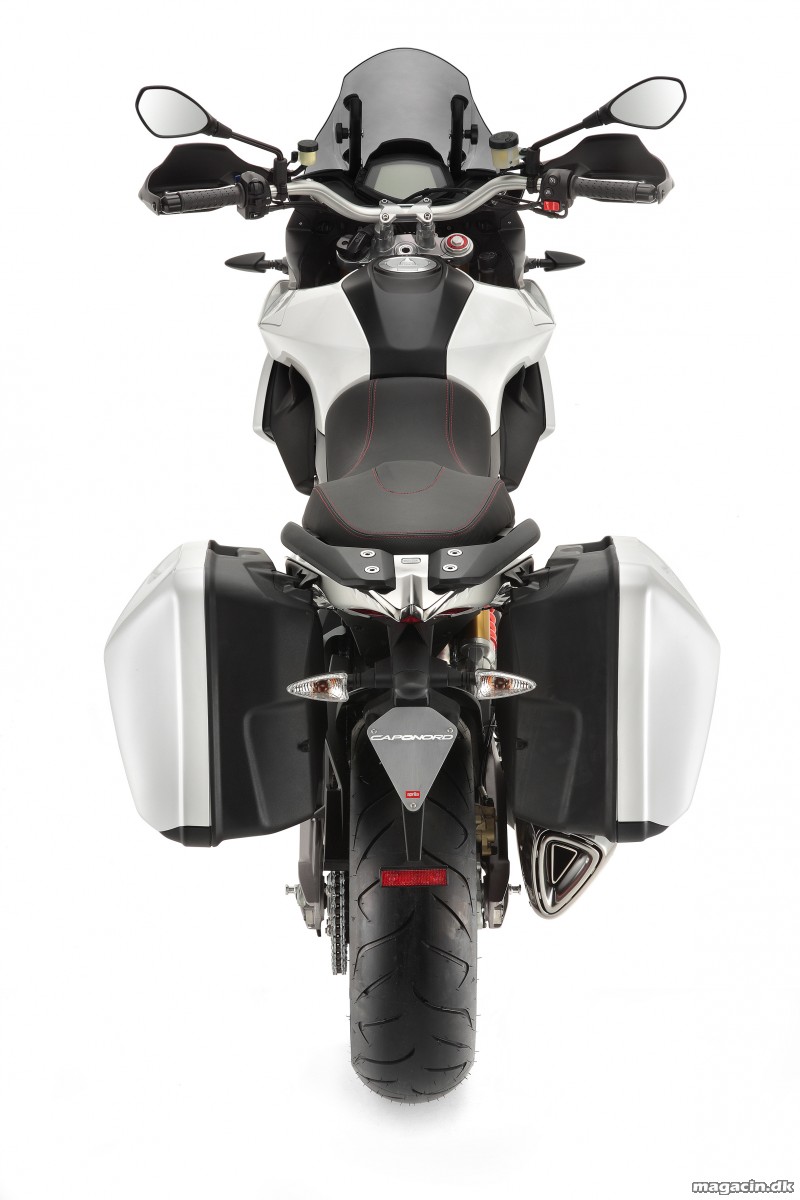

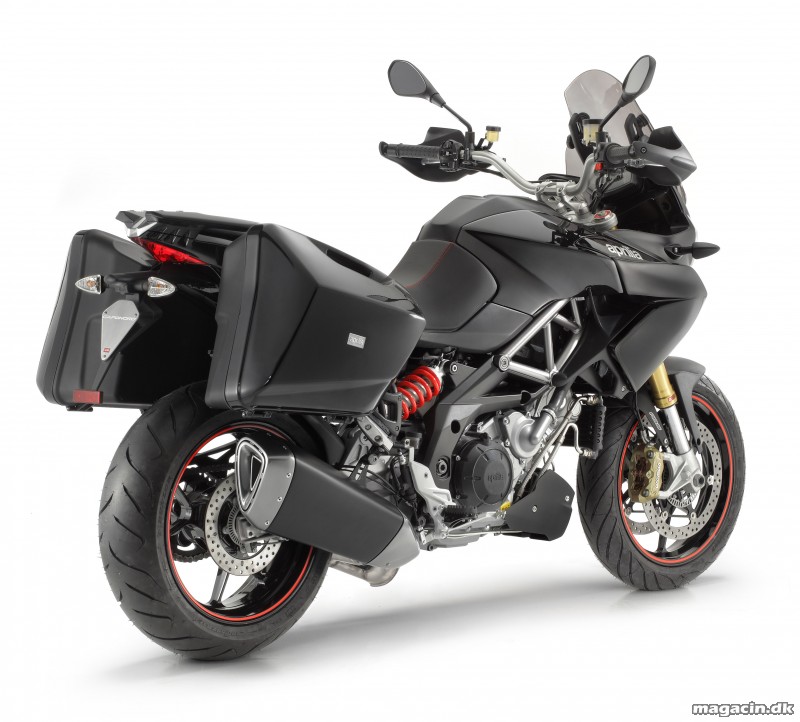

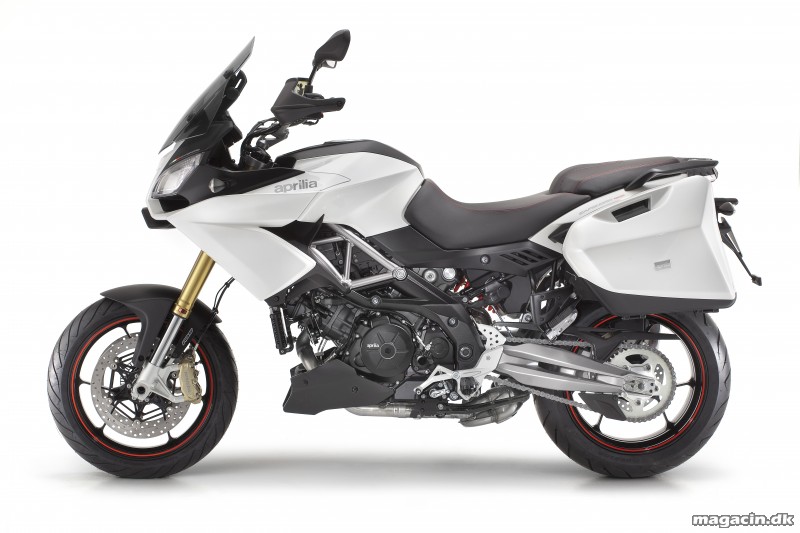

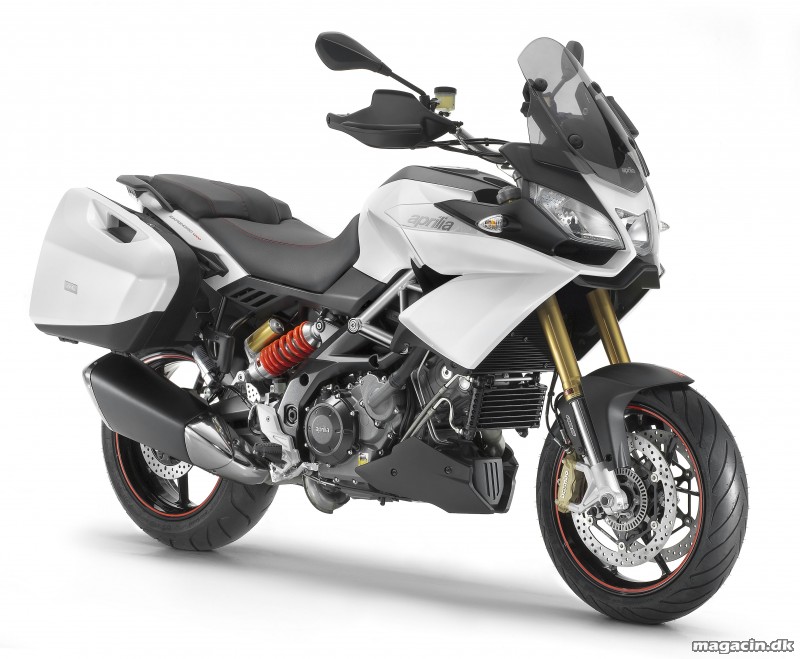

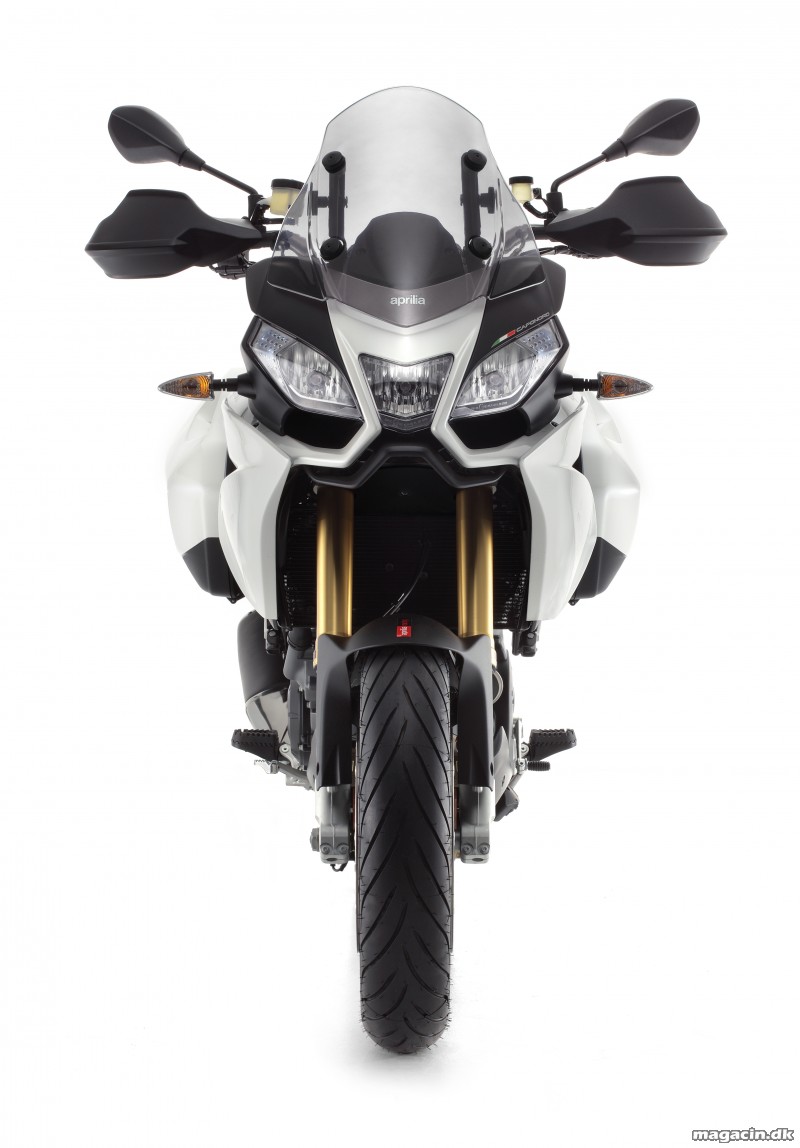

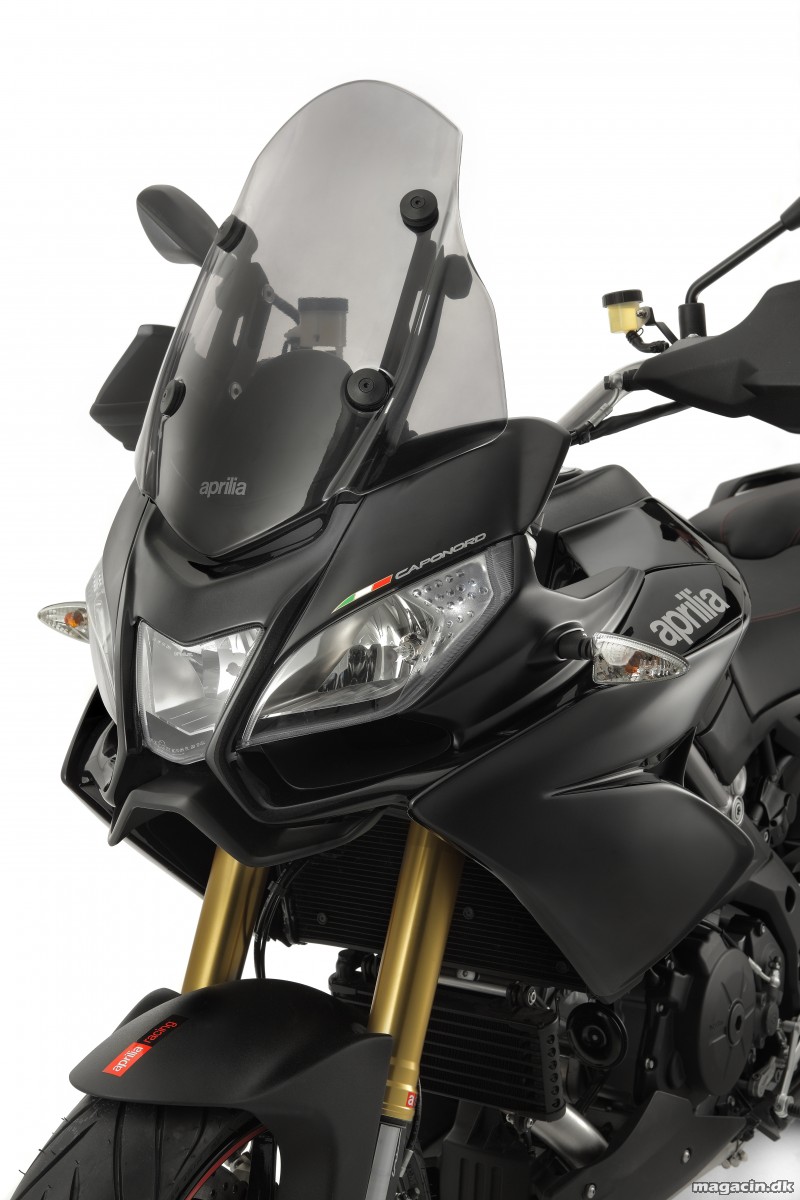

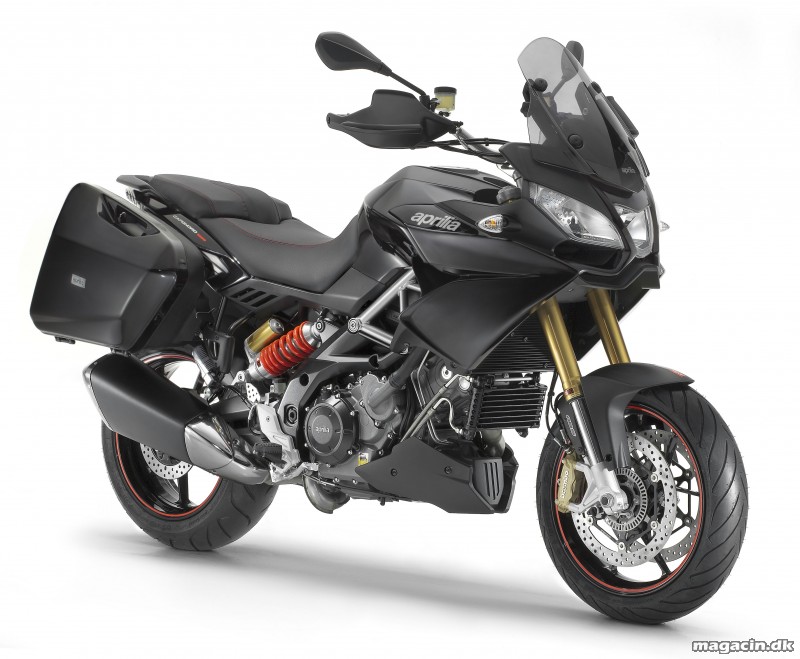

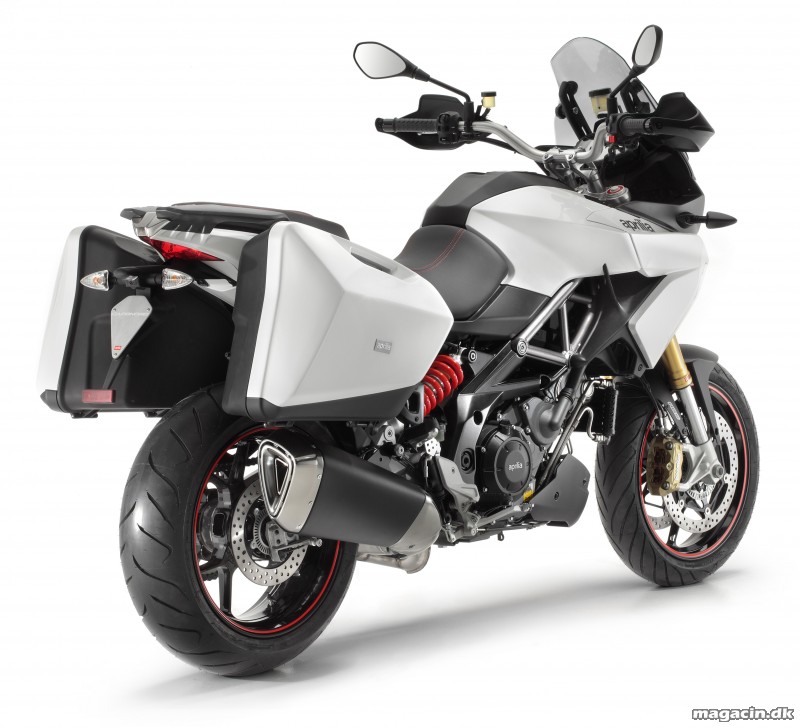

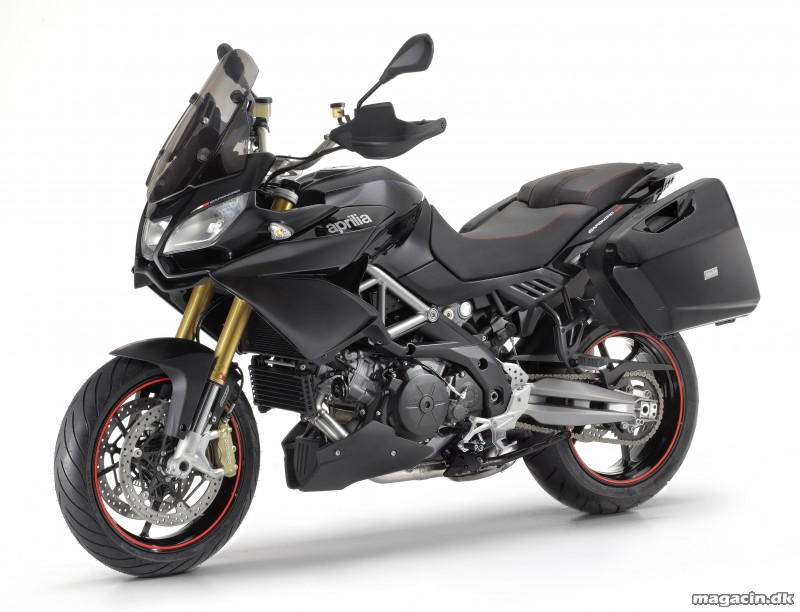

Billeder af den nye rejsekonge fra Aprilia

Tommy Rønn
13/11-2012 kl. 20:00

Komplette data og pris må vente til Aprilia frigiver disse.

Aprilia Data:

Engine type Aprilia V90 four-stroke longitudinal 90° V-twin engine, liquid cooled, double overhead camshaft with mixed gear/chain timing system, four valves per cylinder

Fuel Unleaded petrol

Bore and stroke 106 x 67.8 mm

Total engine capacity 1197 cc

Compression ratio 12.0 ± 0.5 : 1

Maximum power at crankshaft 128 CV (95,5 kW) a 8.500 giri/min.

Maximum torque at crankshaft 11,8 kgm a 6.500 giri/min.

Fuel system Integrated engine management system. Injection with triple map Ride by Wire throttle management: Sport (S), Touring (T), Rain (R)

Ignition Digital twin spark electronic ignition integrated with injection system

Starter Electric

Exhaust system 100% stainless steel 2-in-2 exhaust system with dual catalytic converters and oxygen sensor

Alternator 690 W/6000 rpm

Lubrication Wet sump

Gearbox 6 speeds, drive ratio: 14/37, 18/32, 21/28, 24/26, 25/24, 27/24

Clutch Multiplate wet clutch, hydraulically operated

Primary drive Straight cut gears, drive ratio: 40/69

Secondary drive Chain. Drive ratio: 16/43

Chassis Modular tubular steel frame fastened to aluminium side plates by high strength bolts. Removable steel rear subframe

Front suspension 43 mm Sachs upside-down front fork with fully adjustable compression and rebound damping and spring preload. Wheel travel 167 mm.

Rear suspension Aluminium alloy swingarm

Sachs hydraulic shock absorber with adjustable rebound and preload. Wheel travel 150 mm.

Brakes Front: Dual 320 mm stainless steel floating discs. Brembo four-piston radial callipers. Metal braided brake hoses.

Rear: 240 mm stainless steel disc. Single piston Brembo calliper. Metal braided brake hose. Continental two channel ABS system and Aprilia Traction Control (ATC).

Wheel rims Lightweight aluminium alloy with three split spokes

Front: 3.50 X 17″ Rear: 6.00 x 17″

Tyres Radial tubeless tyres; Front: 120/70-R17; rear: 190/55-17

Dimensions Max. Length 2240 mm

Max height 1456 mm

Saddle height 840 mm

Wheelbase 1565 mm

Trail 125 mm

Headstock angle 27°

Tank 24 litres (including 5 litre reserve)
